Herrenknecht TBMs Tunneling Under LA

herrenknecht-LA-Metro

In April 2017 EPB Shield “Harriet” completed its tunneling mission totaling 3.2 km under Los Angeles as scheduled. The new Crenshaw/LAX Transit Corridor will shorten inner city travel times and improve the connection to international airport LAX.

Los Angeles, the City of Angels, suffocates in traffic during rush hour. For this reason, the Los Angeles Metropolitan Transportation Authority (Metro) is pushing ahead at full speed with the expansion of local transport links. In the coming years, the existing metro rail network will be expanded in a number of different places.

The latest example is the Crenshaw/LAX Transit Corridor. The nearly 14-km long new light rail route will improve the connection between the urban centers of Crenshaw and Inglewood as well as the region around Los Angeles International Airport (LAX). LAX passenger numbers alone show the high demand for public transport capacity: in 2016, more than 80 million passengers were processed – and the trend is rising.

Between May 2016 and April 2017, the Earth Pressure Balance Shield (EPB) “Harriet” worked its way forward underground for a section of the Crenshaw/LAX Transit Corridor. The Herrenknecht TBM (6.51 m OD) first excavated a 1.6-km long tunnel between the future stations of Expo/Crenshaw and Leimert Park. It was then disassembled and transported back to the launch shaft for the second, parallel section.

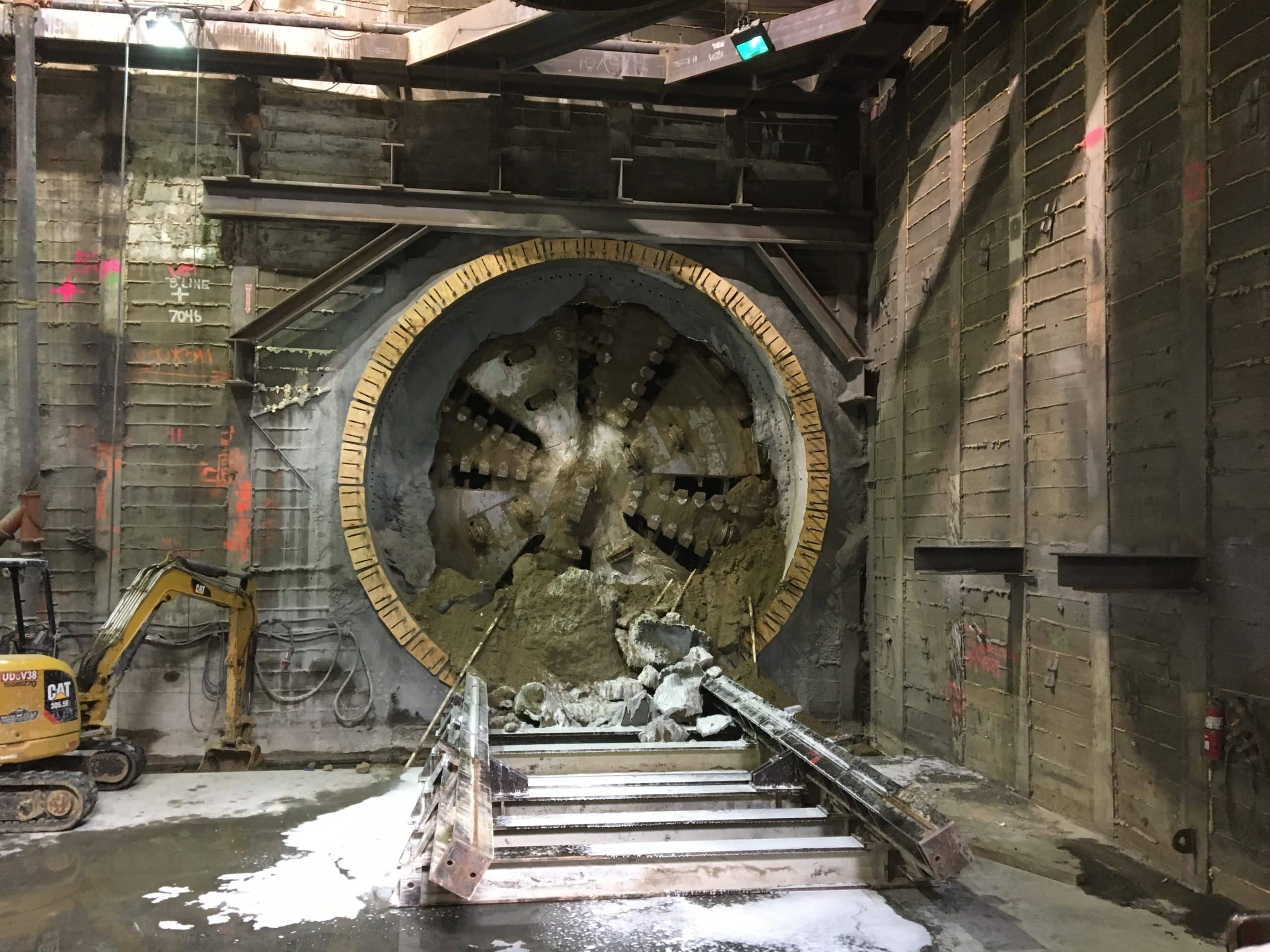

In April 2017, the TBM completed its mission below Los Angeles with the second breakthrough in the target shaft at the Leimert Park station. With a 24-hour best performance of 43 m, a new record in mechanized tunneling with a subway-sized EPB Shield was set for the city of Los Angeles. Thanks to weekly best performances of 170 m the Crenshaw/LAX Transit Corridor is expected to go on line on schedule in 2019.

Meanwhile, in February 2017 the Earth Pressure Balance Shield “Angeli” got under way. The TBM is boring a section of the Regional Connector Transit Corridor. It will link the existing Gold, Blue and Expo Metro Lines to new and faster direct connections. From 2020 this will allow locals and visitors to travel north-south from Azusa to Long Beach and east-west from East Los Angeles to Santa Monica without having to change. Angeli has just finished the first of two 1.7-km long tunneling routes. On July 18, the TBM reappeared in the target shaft at 4th Street. Next, it will dig a parallel tunnel with the final breakthrough scheduled for the end of the year.

RELATED: LA Metro Secures $1.6B for Purple Line Extension Phase 2

One of the greatest challenges in mechanized tunneling under Los Angeles are the possible gas deposits. In order to master these safely, the contracting joint ventures have opted for special technology from Herrenknecht. The electrical components in Harriet and Angeli are explosion-protected so that safe tunneling can be realized at all times. This measure has previously proved its worth worldwide in various reference projects.

Herrenknecht-LA-Metro

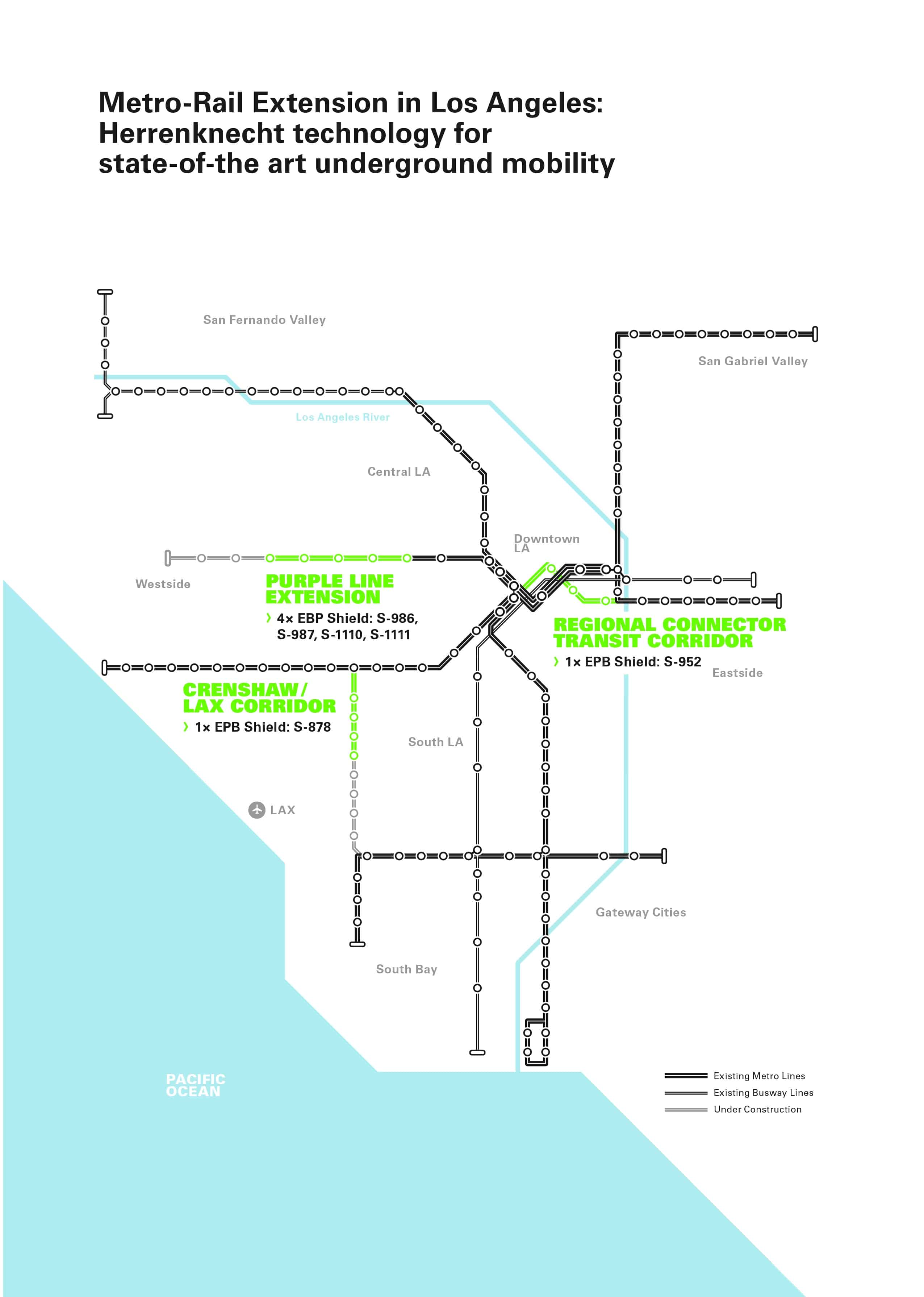

A total of six Herrenknecht tunnel boring machines are realizing state-of-the-art metro tunnels for the Los Angeles metro rail extension in several areas of the metropolis.

Despite the complex geological conditions and the inner city drive beneath densely populated areas, and thanks to the active communication of Metro, the two Earth Pressure Balance Shields have already gained a certain cult status with the population of LA. The much-read Twitter account of Harriet was closed after its breakthrough; Angeli continues to communicate with the interested population (account: Angeli@regionaltbm).

To name the machines, Metro ran a competition for school children. From the many suggestions, the majority of the more than 50,000 online voters chose Harriet, thereby honoring anti-slavery activist Harriet Tubman. Angeli also comes from the pen of a school child. The term comes from Latin and means “angel.”

In the meantime, designers and engineers at the Herrenknecht headquarters in Schwanau are already working on the next order for Los Angeles. The existing Purple Line is also planned to grow by 14.5 km and seven stations. To this end, in both the spring of 2018 and the spring of 2019, two additional Herrenknecht Earth Pressure Balance Shields each are to be launched in the USA.

In just a few years the four machines will produce over 11 km of high-quality tunnel tubes. A decade ago, under similar conditions, two EPB Shields from Herrenknecht had already built a total of 4 km of tunnel for the expansion of the Gold Line. Herrenknecht technology in Los Angeles is thus already a real success story.
