AECOM-Arup JV Celebrates Second Avenue Opening

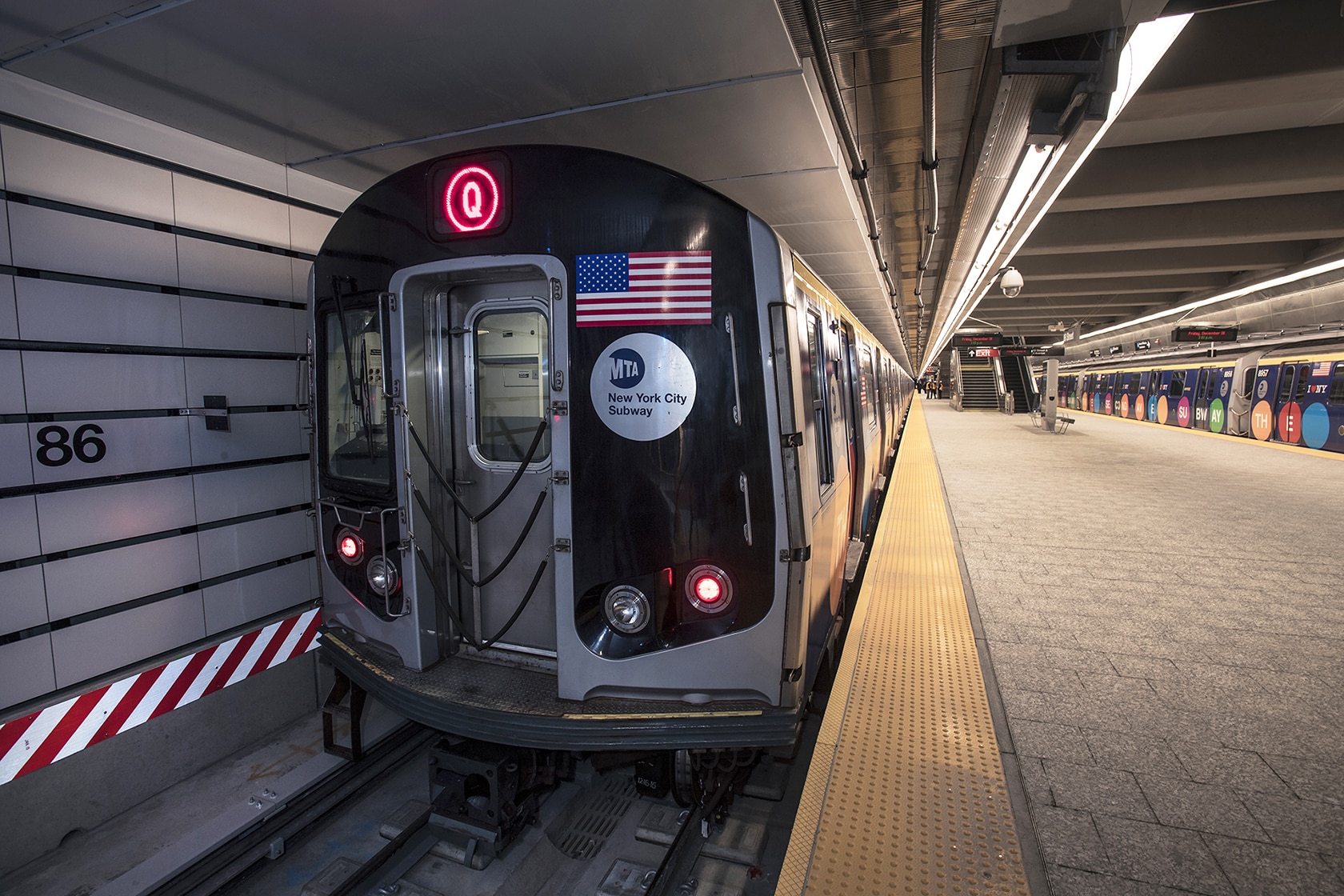

On Dec. 30, 2016, Governor Andrew M. Cuomo and MTA Chairman and CEO Thomas F. Prendergast unveiled the Second Avenue Subway's 86th Street Station. (Photo: MTA/Patrick Cashin.)

On Dec. 30, 2016, Governor Andrew M. Cuomo and MTA Chairman and CEO Thomas F. Prendergast unveiled the Second Avenue Subway’s 86th Street Station. (Photo: MTA/Patrick Cashin.)

The AECOMArup joint venture is celebrating the completion of the first phase of the Second Avenue Subway for the MTA. The first major expansion of New York City subway system in nearly a century, the 1.8-mile stretch of track runs between 63rd and 96th streets and consists of three new stations, plus one upgraded station. The AECOM-Arup joint venture provided full engineering and architectural services for Phase 1 of the $4.451 billion landmark project, which broke ground in April 2007.

“The on-time completion of the first phase of the Second Avenue Subway is a major achievement. The engineering and design ingenuity represents our best-in-class approach to large scale transit projects,” said Julie D’Orazio, senior vice president, NY Metro Transit/Rail Manager, at AECOM. “We thank the Metropolitan Transportation Authority (MTA) and the governor’s office for their guidance and support; because of it the project met the completion deadline set in 2009. We are excited for New York City residents to experience this iconic new subway line.”

“The opening of the Second Avenue Subway will immediately improve the quality of life for thousands of New Yorkers,” said Craig Covil, Arup principal. “Designing and delivering such a complex project required the complete collaboration and unwavering effort of a robust team of engineers and contractors, and would not have been possible without the strong leadership and vision of the MTA and the governor’s office.”

RELATED: Second Avenue Subway Opens in New York

The Second Avenue Subway is part of Governor Andrew Cuomo’s proposed program for improving transportation infrastructure throughout the state, to ensure those who live, work and travel in New York have a safe, efficient, balanced and environmentally sound transportation system.

Serving approximately 200,000 daily riders, the first phase of the Second Avenue Subway will improve travel for both city and suburban commuters on Manhattan’s east side. On an average weekday, it will relieve overcrowded conditions on the nearby Lexington line by as much as 13% (23,500 riders). The project, initially imagined in 1929 and derailed by the Great Depression, will eventually run 8.5 miles along the east side of Manhattan.

“The Second Avenue Subway is a transformative project that takes a leap forward in engineering and design innovation of a transit system.” said Liam Dalton, P.E., project manager at AECOM. “We are very proud to have been a part of the project. Its success is a testament to the hard work, dedication and close collaboration with the contractors.”

Multiple Roles, Critical Responsibilities

An intricate balance of infrastructure, buildings and transit, the Second Avenue Subway project called for a comprehensive approach, one that recognized the social, economic and environmental issues facing the city of New York. Capitalizing on its multidisciplinary capabilities and global expertise, the AECOM-Arup joint venture responded to this situation with services that extend beyond conventional engineering. Among them:

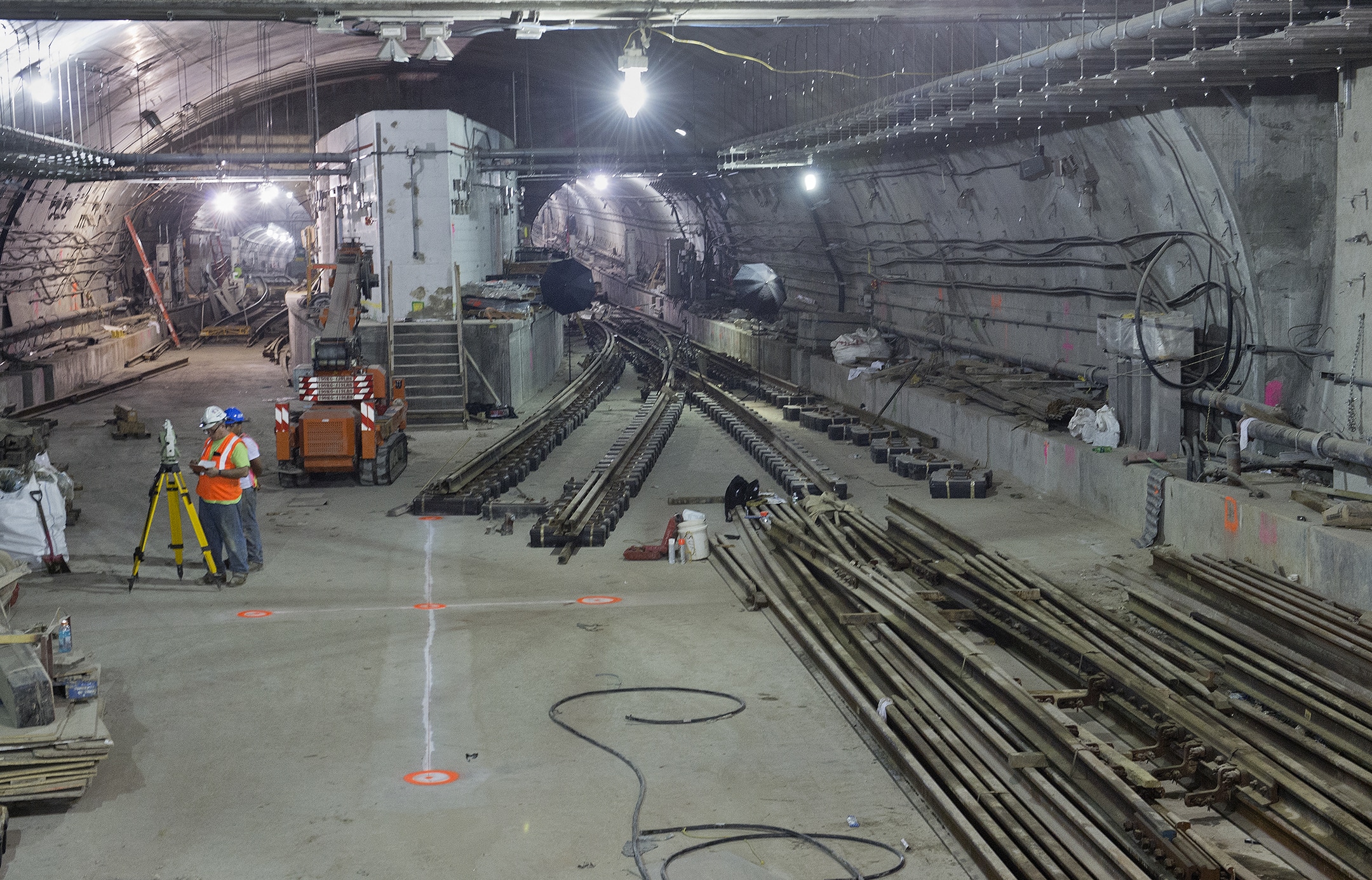

This 2015 photos shows work being done at the future 72nd Street Station of Second Avenue Subway. (Photo: MTA/Patrick Cashin.)

This 2015 photos shows work being done at the future 72nd Street Station of Second Avenue Subway. (Photo: MTA/Patrick Cashin.)

Tunneling. AECOM-Arup took a total design approach to the tunnel construction, one that encompassed life safety issues, ventilation systems, material science and other factors to create a cost-effective and sustainable design. A tunnel-boring machine was employed to excavate the 12,800 ft of twin-track, 22-ft, 1-in. diameter tunnels in the first phase of the Second Avenue Subway. The one expanded and three new stations on the line are some of the largest underground excavations in North America, ranging from 57 to 64 ft in width and up to 1,591 ft in length. Adding to the complexity of the job, these mined caverns all have escalator and elevator connections to street level—features much appreciated by riders who have long endured stairway-only access.

Geotechnical. The Second Avenue Subway is sited below and amid some of the most congested urban infrastructure in the world. Navigating the maze of telecommunications, electrical, gas, steam, water and sewage lines that lie below the asphalt required intensive study and farsighted solutions. AECOM-Arup’s geotechnical experts applied their interconnected skills in foundation and landfill engineering, hydrology, engineering geology and other specialized services to reduce design and construction risks.

RELATED: MTA Begins Procurement for Second Avenue Subway Phase 2

Acoustics. Working with recordings taken at existing subway stations, as part of the joint venture efforts Arup’s acousticians used the firm’s SoundLab technology to create digital models of the environment and determine the best way to quiet the bone-rattling noise typically found in the subway. The solutions include joint-free train tracks with ties that are encased in concrete-covered rubber, ceilings lined with perforated metal panels that are backed with sound-absorbing fiberglass (instead of the echo-prone tile and stone used in other parts of the transit system) and new, carefully oriented public-address speakers as part of a complete audio system that is optimized for intelligibility.

Tunnel Ventilation. The design for the Second Avenue Subway included three new stations 96th, 86th, 72nd street, and the reuse of existing subway stations and tunnels at 63rd street, which required significant updates to be in compliance with modern codes and standards. This, combined with the limited space for the mechanical and electrical systems, necessitated careful planning and creative engineering solutions to bring the existing systems up to code while remaining cost effective. In some instances, mechanical ventilation was employed while other areas necessitated air conditioning treatments.

Pedestrian Modeling. In the absence of a robust set of design guidelines for a new, modern subway line, the AECOM-Arup team worked with New York City Transit (NYCT) Operations Planning to set out design parameters and performance metrics. Using a newly developed model to simulate 3,000 uptown and downtown train arrival combinations, the team generated dynamic pedestrian model simulations for all stations for the morning rush hour. These simulations were used as a design tool to inform the optimal circulation paths for moving passengers between trains and the street level, even taking into account the complex movement associated with transfer passengers at 63rd street, and the challenges at 86th and 72nd streets, where abnormally deep stations necessitate increased use of elevator access.

Stations. AECOM-Arup JV led the multidisciplinary design of the four new underground stations. Working from a new set of NYCT station guidelines developed specifically for the Second Avenue Subway project, the design includes architectural detailing, ADA Compliance, high ceilings, column-free design, dramatic lighting, top-level acoustics, added safety and security, and world-class artwork. All this combines to make these new stations a historic addition to the NYC subway system and the Upper East Side community.
