Robbins Crossover TBM Breaks Through in Mexico City

0
robbins-crossover-mexico city

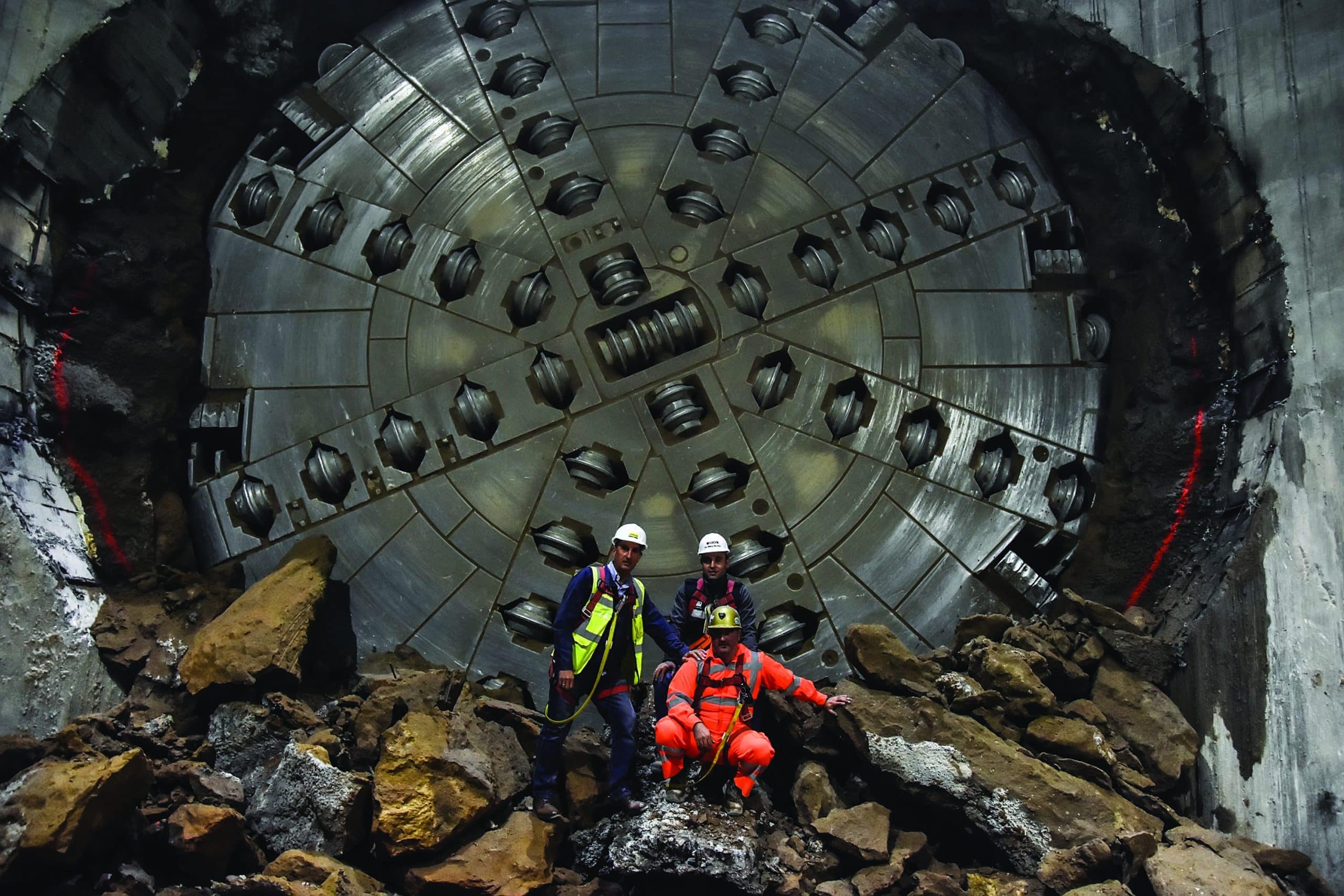

Jobsite personnel celebrate the breakthrough of the 8.7-m (28.5-ft) diameter Robbins Crossover (XRE) TBM for the Túnel Emisor Poniente (TEP) II project.

On March 29, 2016, North America’s first Crossover TBM broke new ground in Mexico City. The 8.7-m (28.5-ft) diameter Robbins XRE – a cross between a rock TBM and an EPB – emerged into an intermediate shaft at Túnel Emisor Poniente (TEP) II.

The machine is undergoing maintenance before continuing on to bore the final 3.2 km (2 miles) of tunnel. The customized TBM, for a consortium of Aldesem, Proacon, and Recsa, was chosen based on a number of parameters that included challenging ground conditions below an area to the west of downtown Mexico City.

/**** Advertisement ****/

The tunnel path travels through a mountain with cover as high as 170 m (560 ft), through fault zones and in a section with cover as low as 8 m (26 ft) above the tunnel crown. Much of the tunnel consists of andesite rock with bands of tuff, and softer material in fault zones as well as an 874-m (2,870-ft) long section in soft ground at the end of the tunnel.

RELATED: Robbins TBM Completes Tunneling for Chennai Metro

Robbins-crossover-mexico sity

The 5.8-km (3.6-mile) Túnel Emisor Poniente (TEP) II will prevent recurring flooding in three key areas surrounding Mexico City once complete.

“The geological profile of the project comprises six different lithologies, among them hard rock such as dacite. To get the best operation in both areas required use of dual mode technology such as the Crossover TBM,” said Enrique del Castillo of contractor Aldesem.

The machine setup includes a canopy drill and positioner for enhanced ground consolidation, as well as gear reducers to adjust torque and rpm based on ground conditions. The TBM, initially launched in hard rock mode, can be operated in EPB mode later on by switching out the belt conveyor with a screw and converting the cutterhead.

The Robbins Crossover machine began its journey in August 2015, and advance rates picked up quickly. Project records were set in January 2016 after the machine achieved a best day of 42.8 m (140 ft) and a best week of 185.1 m (607 ft). By mid-March the machine had bored through the first of the contact zones, a 30 m wide section of fractured and blocky rock. While the excavation through the contact zone was slow going, progress picked up again in the more competent rock. Final breakthrough is expected in autumn 2016.

RELATED: Twin Robbins TBMs Play Key Role in Austrian Hydro Project

robbins-crossover-mexico city

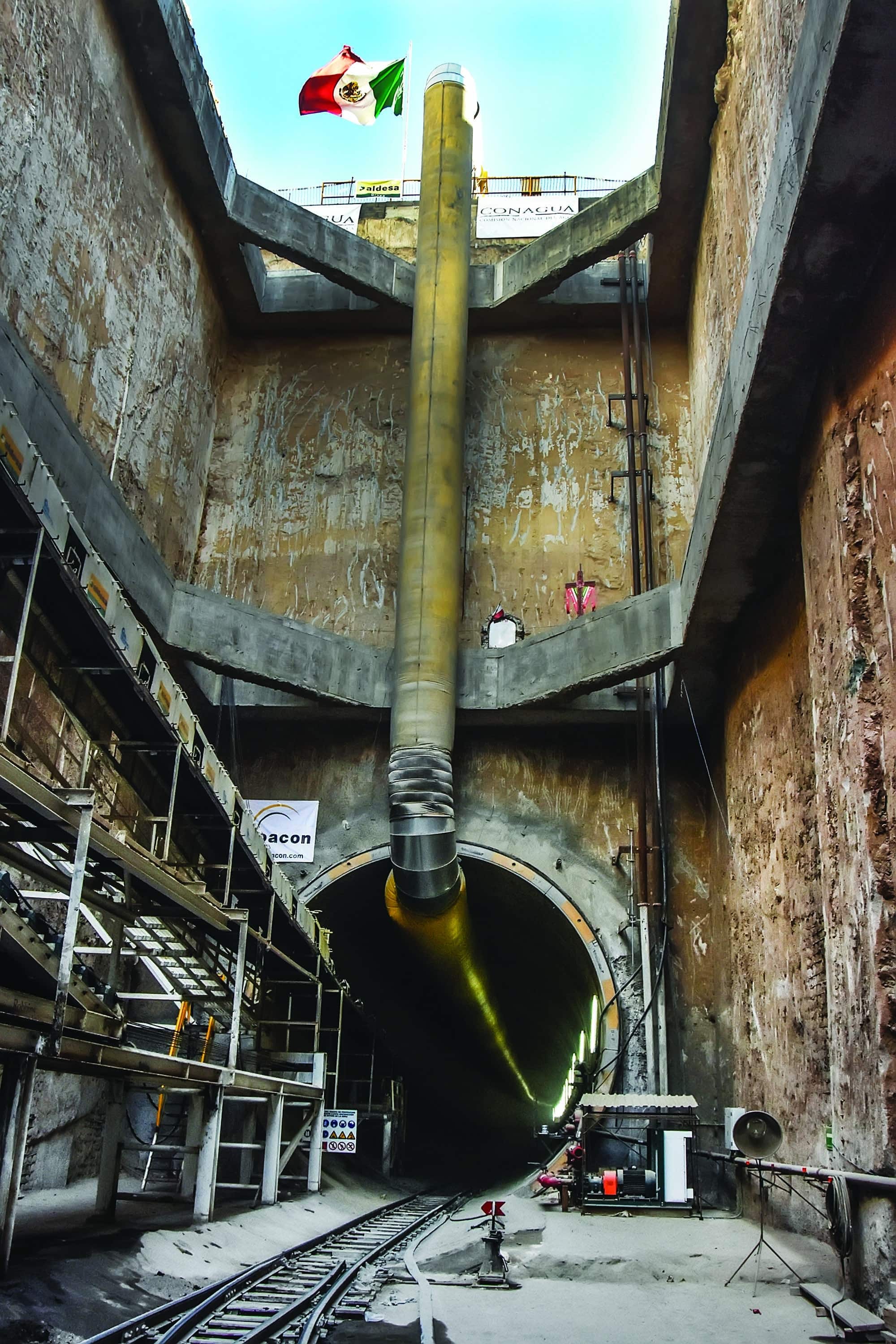

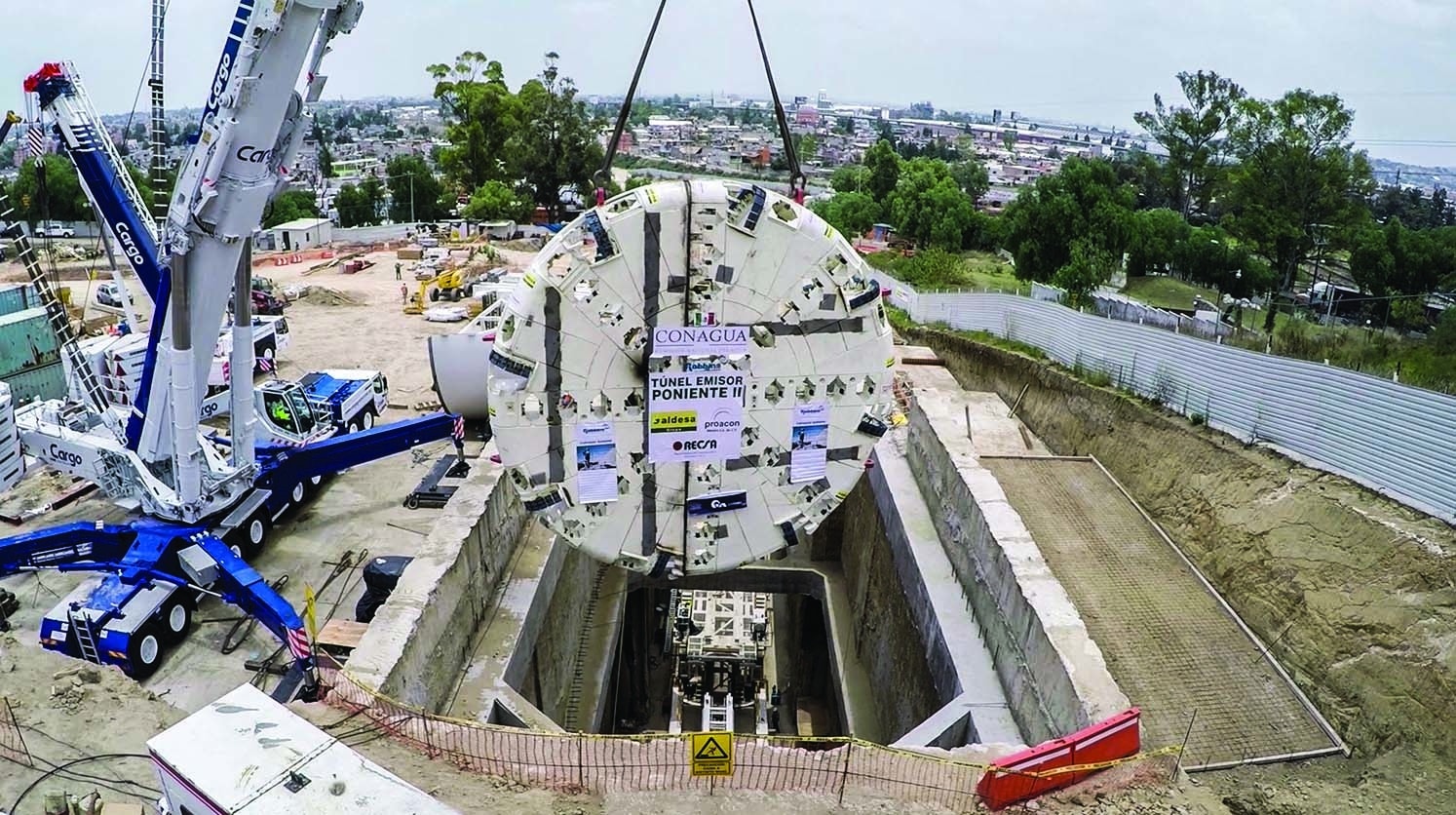

The Robbins Crossover (XRE) TBM began its journey in August 2015 following Onsite First Time Assembly (OFTA) at the narrow launch site.

Once complete, the 5.8-km (3.6-mile) tunnel will supplement an existing and overtaxed wastewater line built in the 1970s. The deep drainage tunnel will serve to prevent recurrent flooding in Valle Dorado, and will benefit the cities of Cuautital Izcalli, Tlalnepantla, and Atizapan de Zaragoza, an area with a total population of 2.1 million inhabitants.
