TERRATEC EPBM Completes Bangkok Rama III Cable Tunnel Project

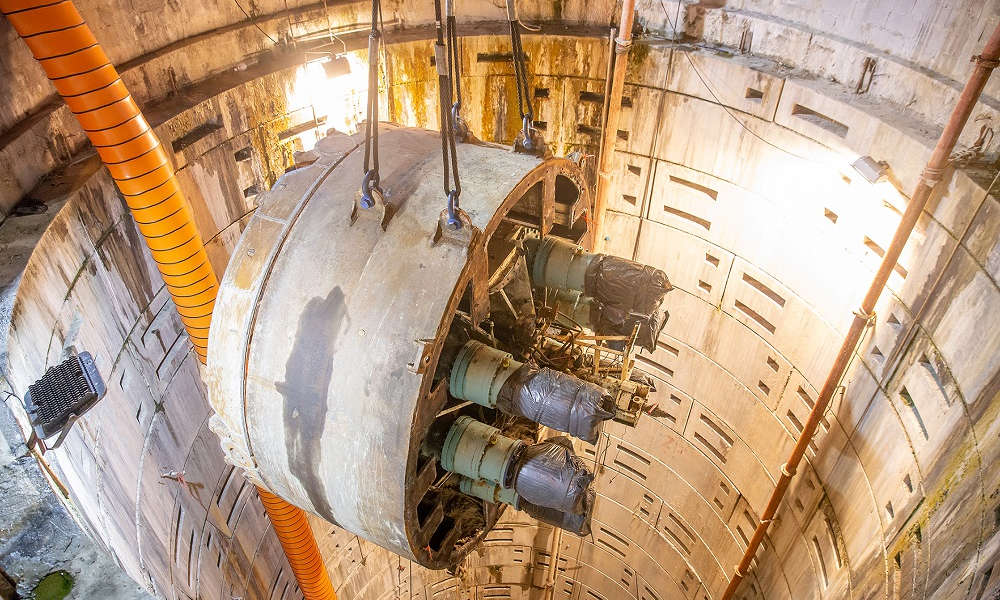

TERRATEC announced the completion of the Rama III Tunnel Project in Bangkok, Thailand. The tunnel was completed using a TERRATEC 4.27-m diameter Earth Pressure Balance Tunnel Boring Machine (EPBM). It successfully holed through in early April 2022 on the Rama III cable tunnel in downtown Bangkok.

The EPBM, owned by contractor Italian-Thai Development PCL (ITD), had previously completed the Chidlom cable tunnel (CCT). After completing the CCT the contractor immediately deployed the machine to the Rama III Tunnel Project.

The Rama III is a new high-voltage cable tunnel that is one of a series of projects being undertaken by Bangkok’s Metropolitan Electricity Authority (MEA) to meet increased power demands in the Thai capital.

This project is subject to several constraining factors including tight alignment constraints and navigating the foundations of overhead bridges along the alignment. This could only be achieved via an X-type articulation system incorporated into the design, which can accommodate the tight 85-m radius curves required by the project. The TERRATEC 4.27-m diameter’s soft ground cutterhead features an open spoke design to ensure good material flow and the addition of knife bits to assist break-in and break-out of the concrete shaft eyes.

RELATED: CBE Group Wins Two Tunnel Projects in Thailand

Two types of segments were installed, universal tapered precast concrete segments, 1,200-mm long (installed as the machine normally progresses), and shorter steel segments, 600-mm long (utilized during the course of the sharp radius curves).

Tunneling operations were closely observed throughout the project via a settlement monitoring program that demonstrated minimal impact on the existing above-ground structures.

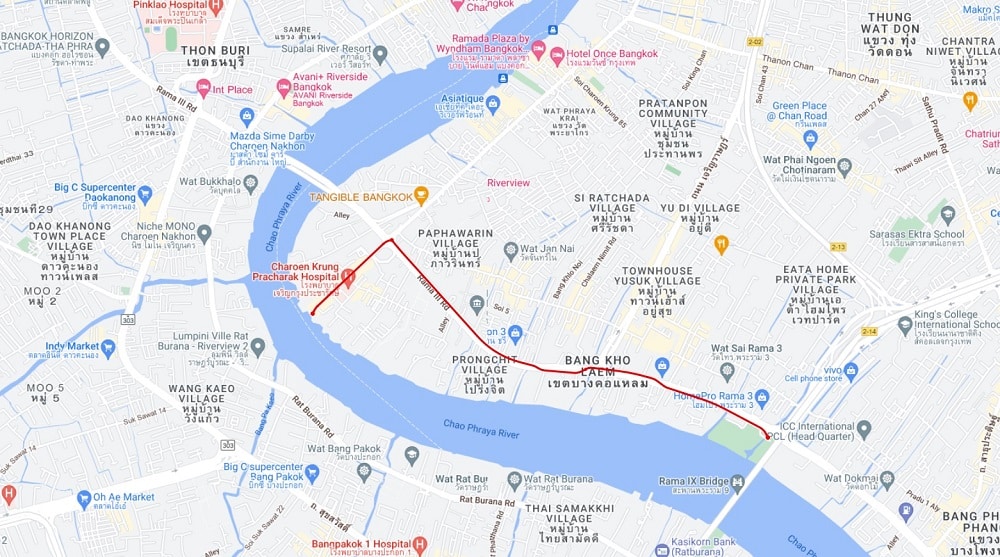

Geological conditions along the 3.5-km Rama III tunnel alignment consist of stiff to very stiff clay with lenses of sand and a groundwater head of about 2 bars.

The project is located close to the Chao Phraya River with heavy traffic and the physical limitations of this built-up area – which includes numerous high-rise buildings and the foundation of the overhead bridge. Logistics during the launch and operation of the TBM have been extremely challenging especially during the transportation and delivery of oversize TBM parts for assembly on site. TERRATEC’s highly experienced Field Service staff have therefore been working closely with ITD from day one in order to ensure every aspect is planned in advance.

TERRATEC has a well-established regional base in Thailand, having sold its first machine in the country 10 years ago for the Metropolitan Rapid Transit (MRT) Blue Line Extension Project. With outstanding tailor-made robust TBM design, prompt onsite assistance, readily available stock of TBM spares and specialized TBM support throughout the tunneling operation, TERRATEC has become the country’s leading TBM supplier.
